Holzmann VD1100N 230V Variable Speed Lathe
+3

Holzmann VD1100N 230V Variable Speed Lathe

9120039902920
£1,099.94
In stock
1
Product Details

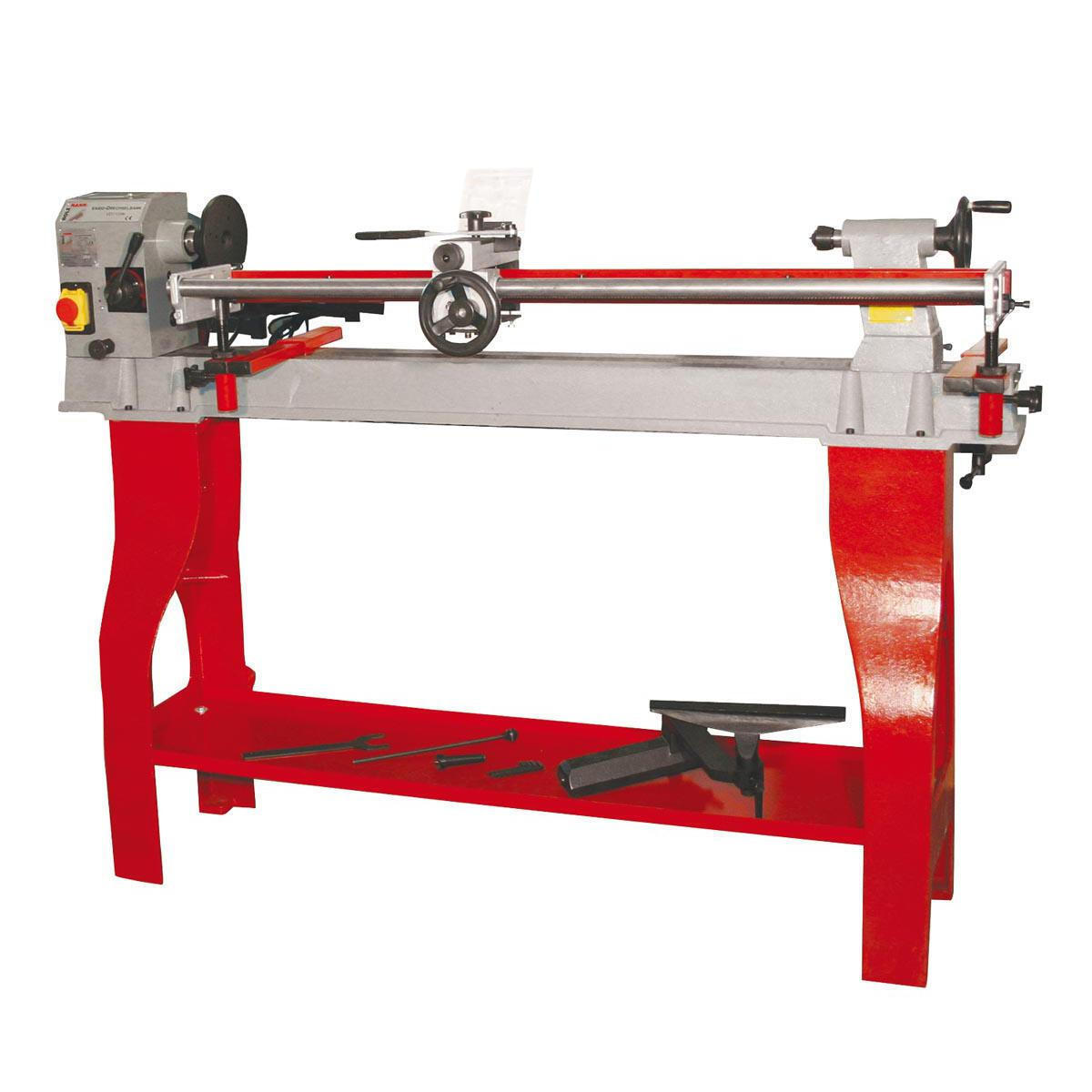

Holzmann VD1100N 230V Variable Speed Lathe




Highlights

  • Heavy cast iron base allows vibration-free work and stability
  • Bed, base frame, tailstock and headstock made of solid gray cast iron
  • Headstock can be rotated 90° so external turning is possible
  • Copying device for copying originals or stencils
  • Copy length 1000mm
  • MK2 tailstock
  • Quick adjustment for tailstock and headstock
  • large face plate

Scope of delivery: base frame, 4-point driver, ball-bearing rolling center, faceplate, operating tool, copying device, hand rest

Technical Details

Engine data
Engine power S6 in W 1100
Motor power S1 in W 750
Tension 230V
General dimensions
Table height in mm 900
Lathes
Spindle bore in mm 12
Threaded mount M33 DIN800
tailstock cone MK2/MT2
Rotary spindle speed in min-1 500-2000
Copy tip height in mm 80
Quill travel in mm 60
Center width in mm 1100
Center height in mm 185
Weight
Net weight in kg 119
Gross weight in kg 149
Shipping dimensions
Packaging height in mm 430
Packaging width in mm 340
Packaging length in mm 1,620
General data
EAN Code 9120039902920


Optional Accessories

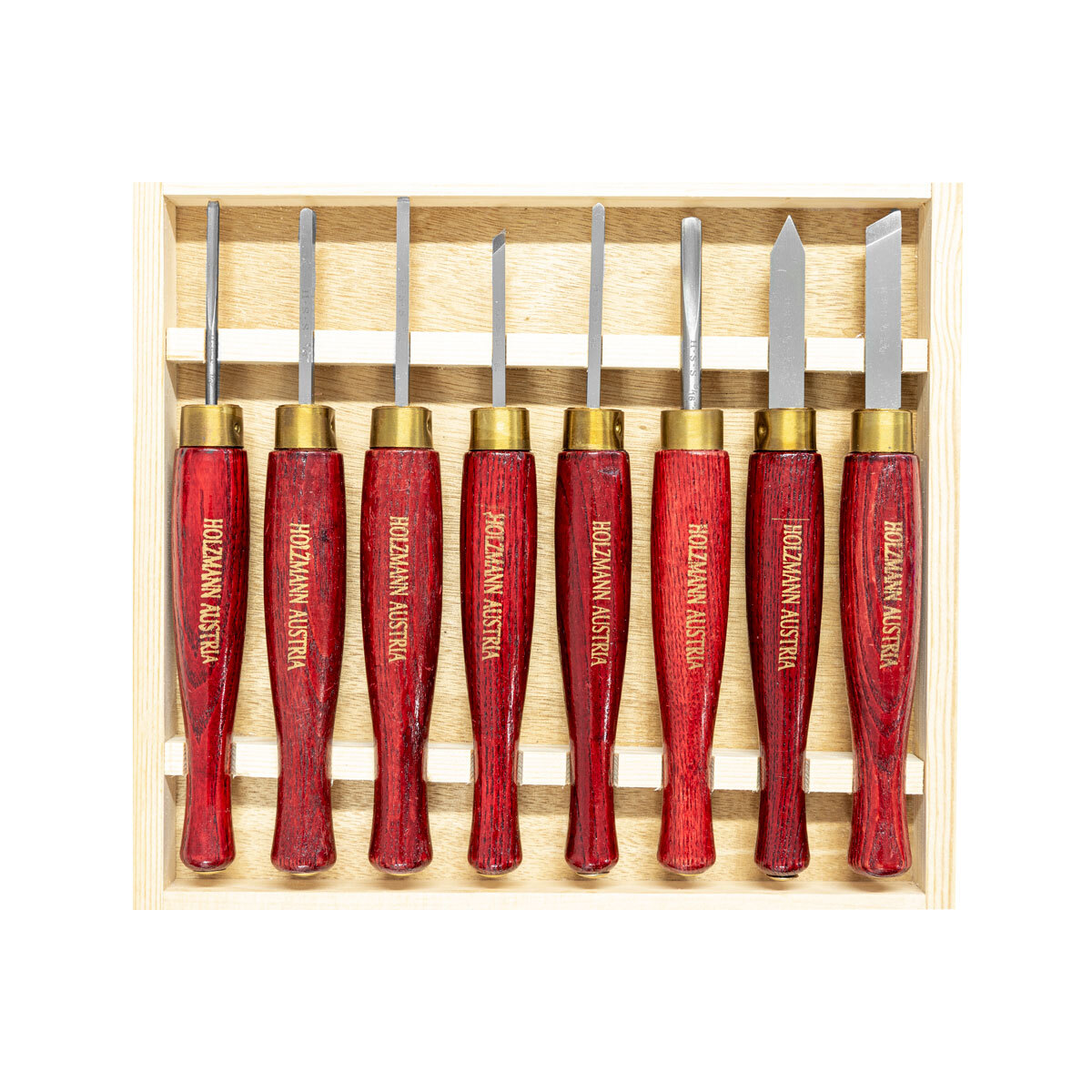

HM8TLG Wood Turning Chisel Set 8 pieces

Micro turning set 8 pieces. / HM

Technical details

Weight
Net weight in kg 2
Gross weight in kg 3
Shipping dimensions
Packaging height in mm 100
Packaging width in mm 220
Packaging length in mm 220
General data
EAN Code 9120039903149

DP65 Turning Professional Basic Set 2-1/2 inch 4 pieces.

The self-centering 4-jaw chuck gives the workpiece stability during machining. The 4 different clamping jaws included in the set cover a clamping range of 2 to 87 mm. Suitable for HOLZMANN wood turning machines (D300F, D460FXL, D510F, VD1100ECO,…)

Highlights

  • Jaw chuck Ø65mm, M33
  • 1. Clamping jaw 22.5-46 / 32.5-59 mm
  • 2. Clamping jaw 22-46 mm
  • 3. Clamping jaw 2-26 / 16-52 mm
  • 4. Clamping jaw 53-74 / 65-87 mm

Technical details

Weight
Gross weight in kg 2.60
Net weight in kg 2.55
Shipping dimensions
Packaging width in mm 200
Packaging length in mm 400
Packaging height in mm 200
General data
EAN Code 9120058375767

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
