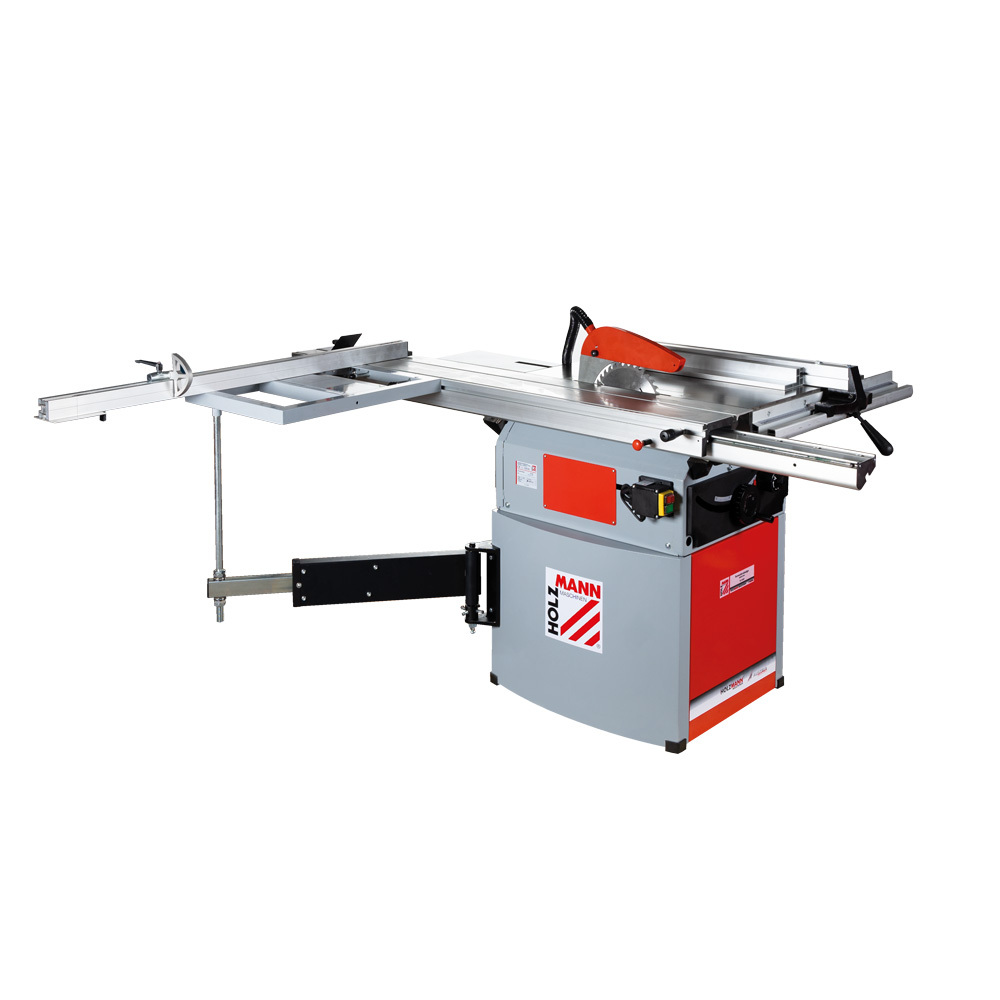

Holzmann TS250F 250mm Dia Panel Saw Package

Holzmann TS250F 250mm Dia Panel Saw Package

Highlights

• with format slide
• very robust and precise execution with
• Professional aluminum format sliding carriage
• large boom supported by swivel arms on the sliding table
• Absolutely smooth and precise saw blade height and angle adjustment
• Up to 45 ° (left / right) swiveling and extendable crosscut fence (1230 / 2275mm) with a folding fence
• large stable gray cast iron table including table extension

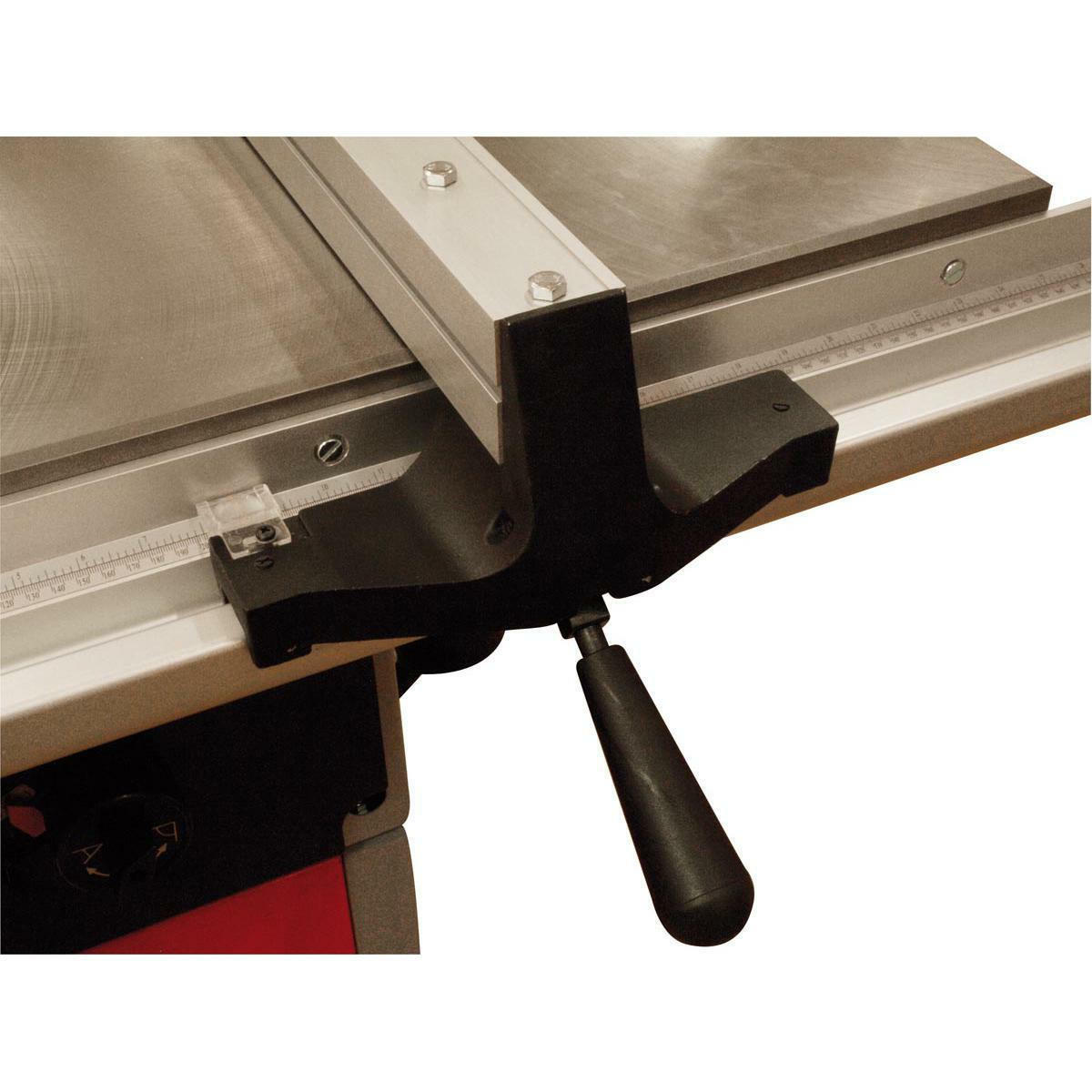

• Rip fence with quick fixing function
• Saw blade inclination (90-45 °)

Scope of delivery: HM circular saw blade Ø254x30x3 36 teeth format sliding table,

outrigger table, table extension, extendable crosscut fence including folding fence, rip fence, trimming shoe

Technical Details

Motor data

Motor power S6 in W 2900

Motor power S1 in W 2100

tension 230V / 50Hz

General dimensions

Table size in mm 800 x 350

Table height in mm 900

Extraction connection in mm Ø 100 (Ø30)

Format sliding table in mm 1650 x 250

Outrigger table in mm 595 x 460

Table extension in mm 405 x 210

Table extension in mm 800 x 320

Installation dimension in mm 2180 (-3225) x 2930 x 1150

Cutting performance

max.cutting height 90 ° in mm 80

max.trimming length in mm 1250

max.cutting height 45 ° in mm 50

Cutting width at the rip fence in mm 640

Circular saws

Saw blade (/ hole) in mm 254 (/ 30)

Saw blade speed in min-1 4000

Volume and vibrations:

Sound power level in dB (A) 95.7

Sound pressure level in dB (A) 86.5

Weight

Net weight in kg 190

Gross weight in kg 233

Shipping dimensions

Packaging height in mm 1,035

Packaging width in mm 760

Packaging length in mm 970

General data

EAN Code 9120039903927
