Baileigh TN 600 Abrasive Belt Tube Notcher ( Part No. 2004700) Rugged Motorised Abrasive Belt Tube Notcher with 19 mm - 76 mm diameter tube capacity & 60 degrees of angular adjustment.
+3

Baileigh TN 600 Abrasive Belt Tube Notcher ( Part No. 2004700) Rugged Motorised Abrasive Belt Tube Notcher with 19 mm - 76 mm diameter tube capacity & 60 degrees of angular adjustment.

2004700
£8,032.00
In stock
1
Product Details

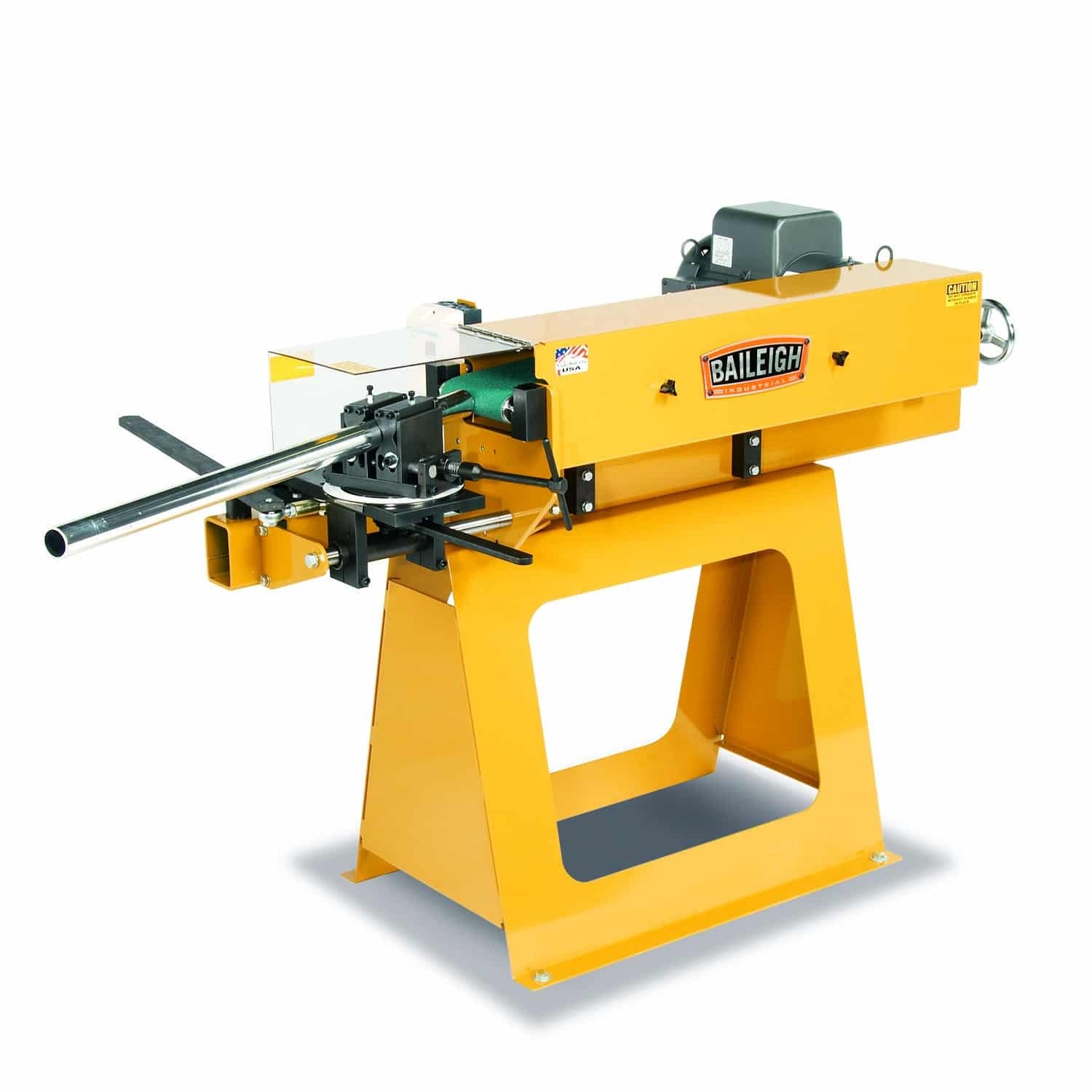

Baileigh TN 600 Abrasive Belt Tube Notcher

( Part No. 2004700)
Rugged Motorised Abrasive Belt Tube Notcher with 19 mm - 76 mm diameter tube capacity & 60 degrees of angular adjustment.



Highlights

TN 600 Abrasive Belt Tube Notcher

  • Motorised abrasive belt
  • 19mm to 76mm Ø tube capacity
  • 0° to 60° adjustment

If you are looking for a high-quality, top rated abrasive tube notcher made in the USA, then look no further than the TN-600 from Baileigh Industrial.

This abrasive tube notcher is a beast when it comes to chewing up metal. The TN-600 has a powerful 5hp motor that notches at full capacity with ease and only requires 220 volts of single phase power, so it can be used in almost all fabrication shops.

It features a 6” x 79” belt that spins at 5400′ per minute. The large 6” belt width allows it to notch up to 3” OD tubing at 60° with optional mandrels. Many sizes of mandrels can be bought separately and are almost always in stock.

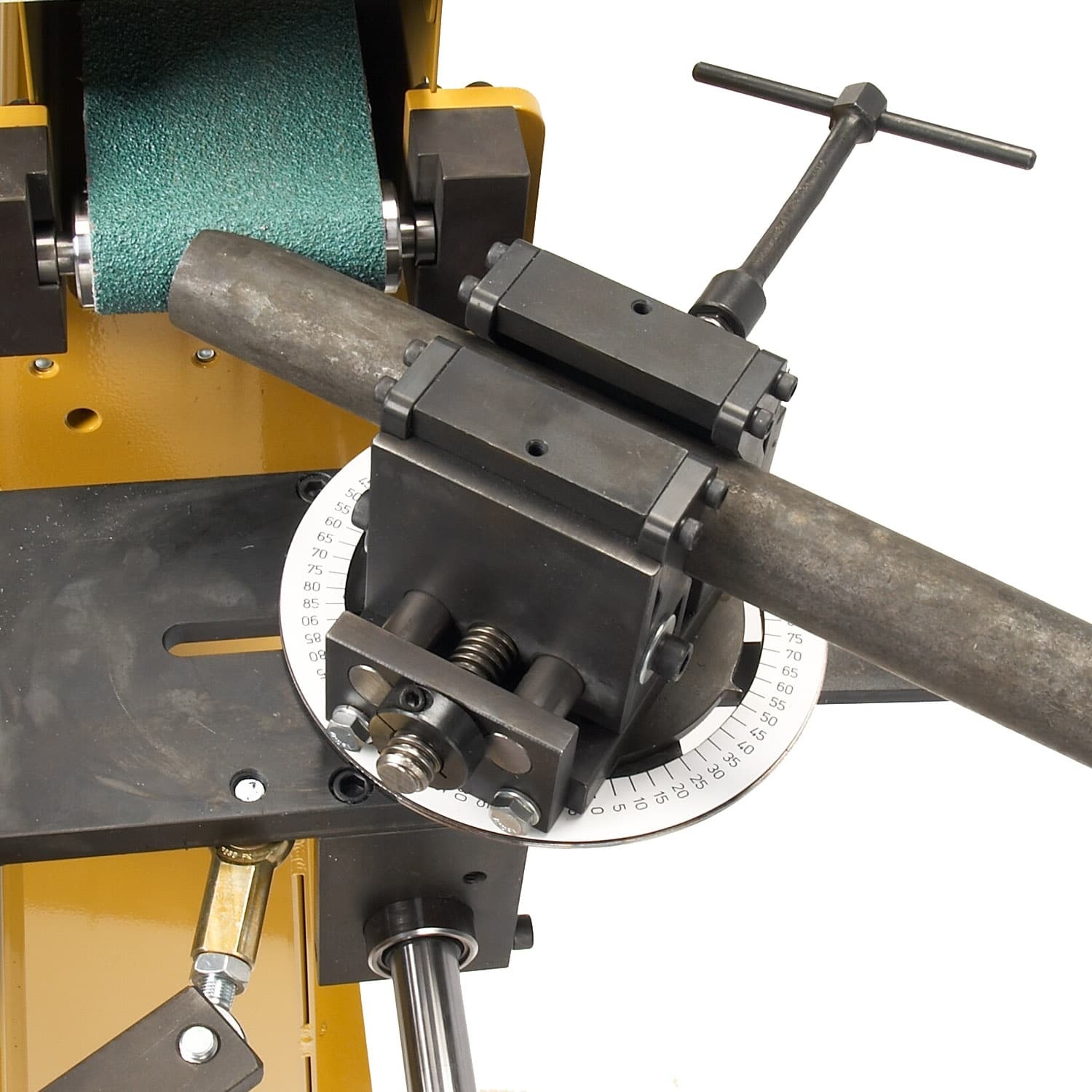

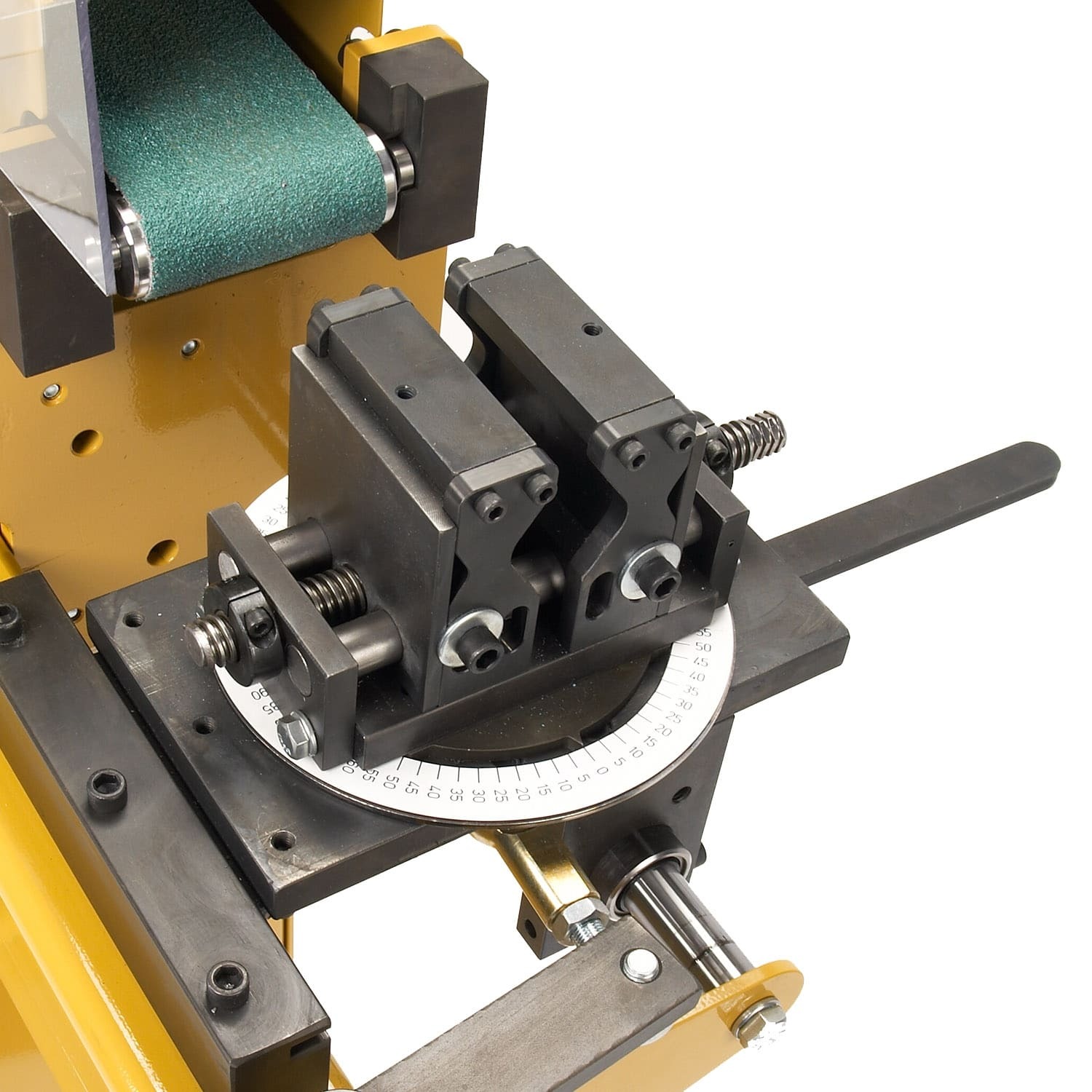

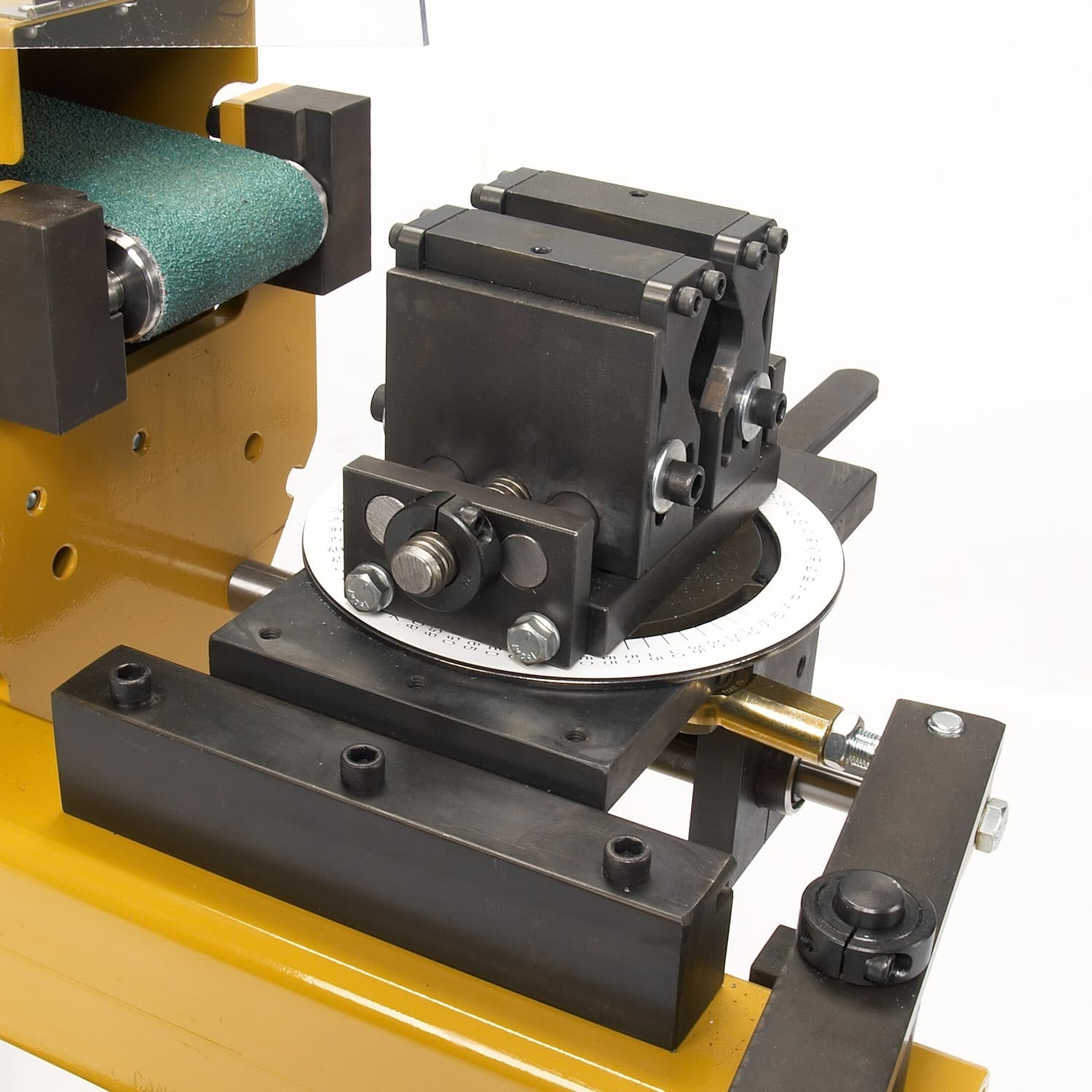

The vice of the TN-600 has V-jaws for a tight grip of the material and is perfect for light gauge to heavy gauge material.

The vice is also self centering so the material can be changed quickly and start in the proper position on the belt.

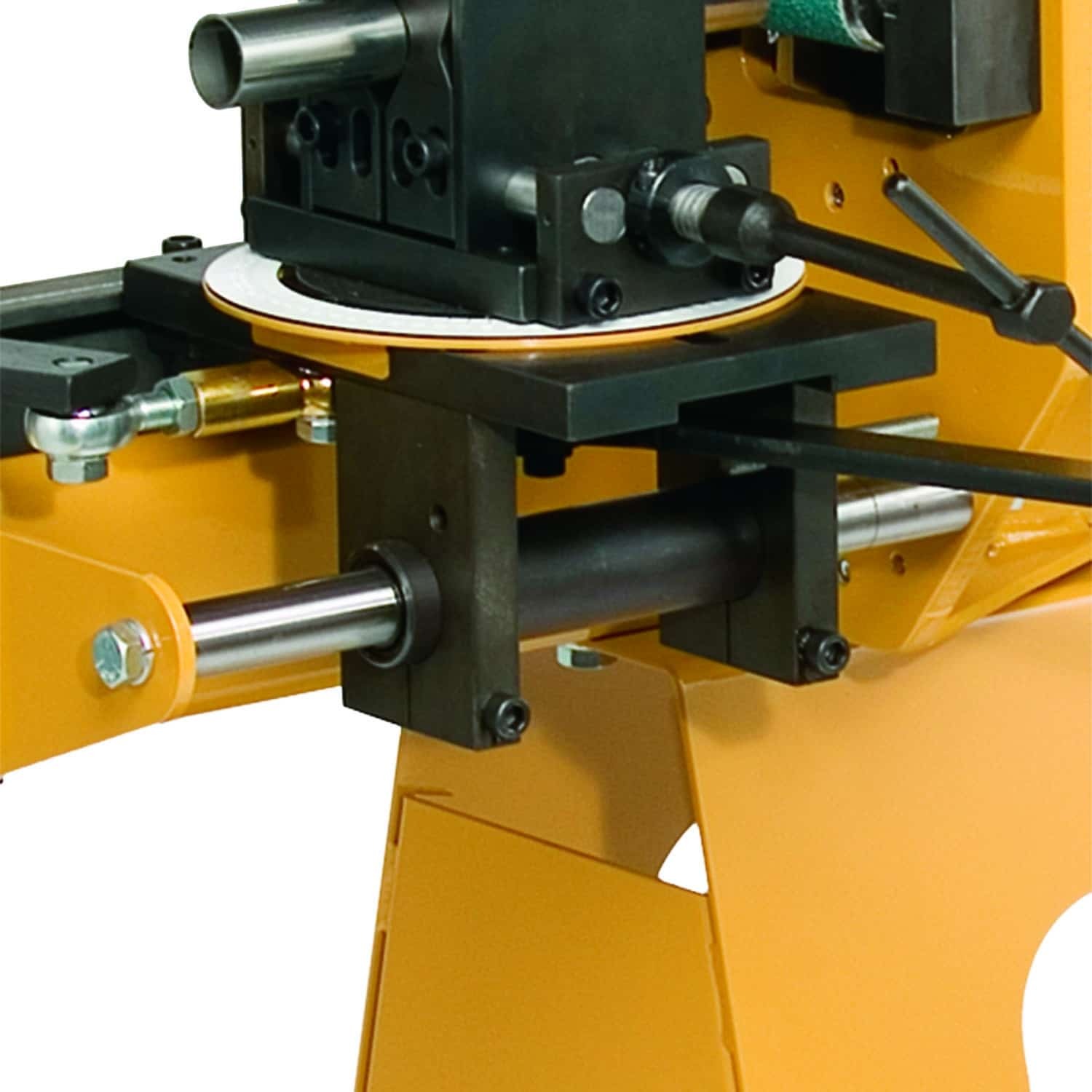

The material is fed into the belt on the TN-600 by a smooth rail system. The system has an adjustable stop for repeatability.

The vice also features a large degree dial to reference the degree of the notch more easily.

If you have a question that is not answered above, please call Traxx Industries today for more information.

Technical Details

Item Number TN-600
Country of Manufacture United States
Motor Hp 5 HP
Notching Capacity (OD) 19.05 mm – 76.2 mm
Angle Adjustment 0 – 60°
Belt Size 152.4 mm x 2006.6 mm
Belt Speed 5400 FPM
Power 220V 1-Phase
Shipping Weight 216 kgs.
Shipping Dimensions (Inches) 1981 mm x 1219 mm x 1321 mm

* specifications subject to change without notice.


Optional Equipment

Many sizes of mandrels can be bought separately and are almost always in stock.

Please call Traxx Industries today for price and delivery information on the range of common tube sizes available.
