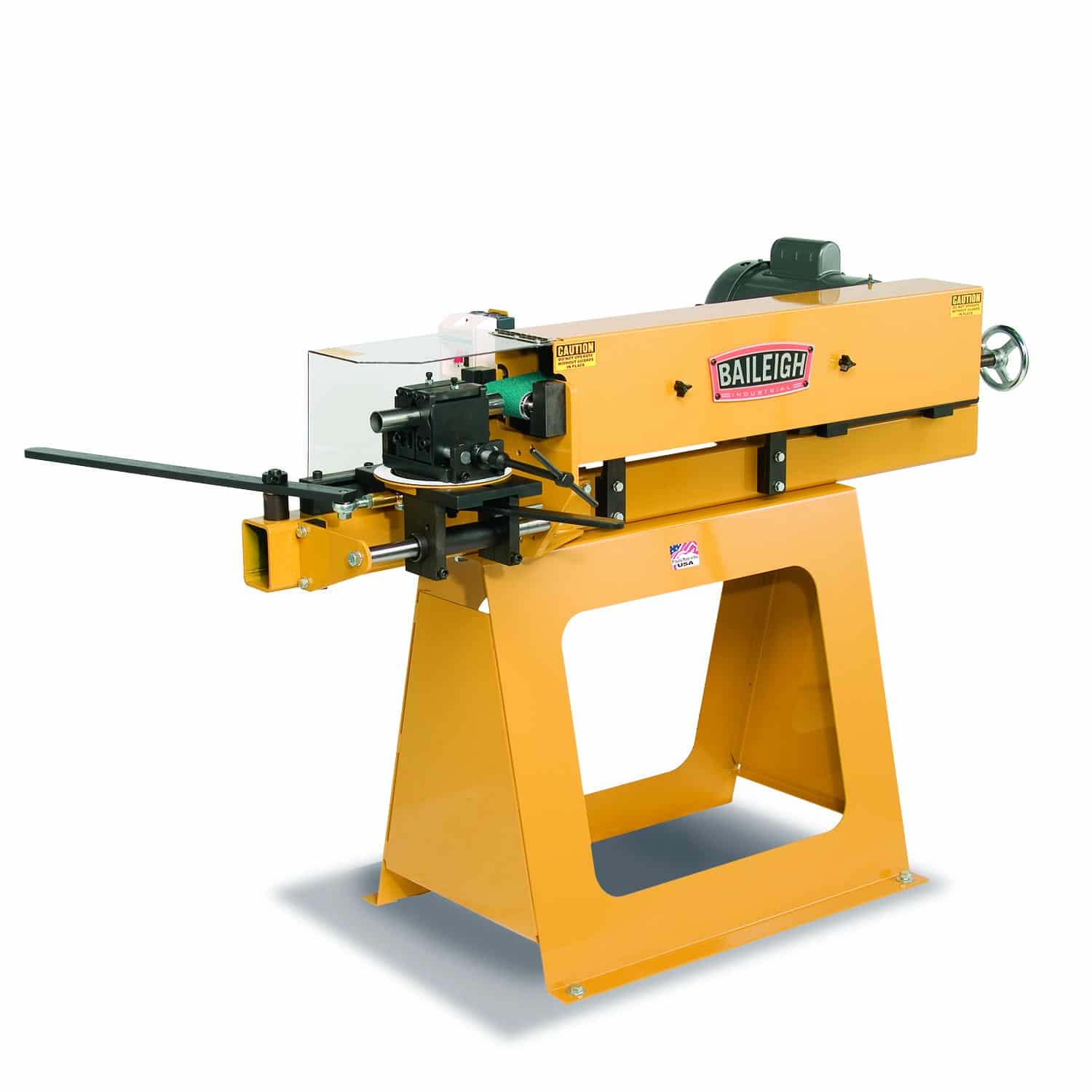

Baileigh TN-400 Abrasive Tube Notcher
Baileigh TN 400 Abrasive Belt Tube Notcher
Highlights
TN 400 Abrasive Belt Tube Notcher
- Motorised abrasive belt
- 19mm to 50.8 mm Ø tube capacity
- 0° to 60° adjustment
The TN-400 abrasive notcher from Baileigh Industrial is on the cutting edge of abrasive notching technology and is perfect for coping the ends of 3/4″ OD to 2″ OD tubing or pipe at almost any angle from 0° to 60°. The TN-400 uses a 3hp motor running on 220 volt, single phase power to spin the 79 x 4 belt at a speed of 5420 per minute.
The TN-400 does require a special mandrel for each size of tube or pipe that you want to notch, but it does feature a quick-change mandrel system that allows the operator to change it in seconds.
The vice on the TN-400 abrasive notcher is where the real magic happens. The vice carriage rides on a smooth Thompson shaft assembly during the notching cycle.
The control lever is pivoted making the material press into the belt. The vice is self-centering for perfect belt positioning every time.
The jaws on the vice are of a V-block design to keep the material centre with the notching spindle and to hold the part more securely.
The TN-400 has a carriage stop for repeatable notches every time.
If you have a question that is not answered above, please call Traxx Industries today for more information.
Technical Details
Item Number TN-400
Country of Manufacture United States
Motor Hp 3 HP
Notching Capacity (Tube) 19 mm 50.8 mm
Notching Capacity (OD) 19.05 mm – 50.8 mm
Belt Size 101.6 mm x 2006.6 mm
Belt Speed 5420 FPM
Power 220V 1-Phase
Shipping Weight 205 kgs.
Shipping Dimensions (Inches) 1524 mm x 1118 mm x 1524 mm
* specifications subject to change without notice.
Optional Equipment
Many sizes of mandrels can be bought separately and are almost always in stock.
Please call Traxx Industries today for price and delivery information on the range of common tube sizes available.
