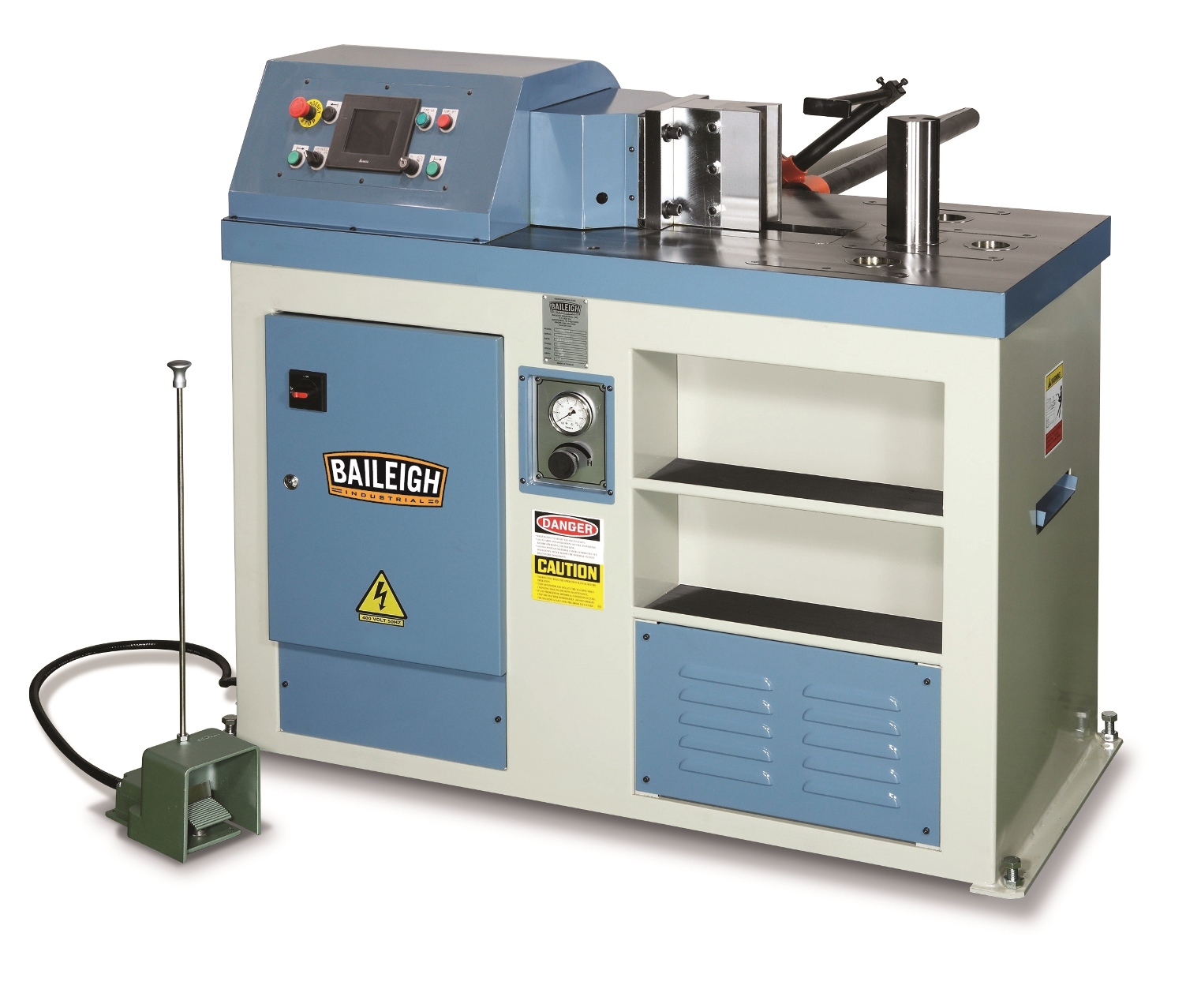

Baileigh Horizontal Press Brake HPB-45NC

•

  This Baileigh horizontal press brake machine can bend, punch, and shear with the right tooling.


  • 5 hp motor produces up to 45 tons of pressure.
  • 9.84” stroke length.
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex.
  • You can adjust the pressure of the the hydraulics for your material.
  • Designed for simple operation. In 15 minutes, anyone could learn to run it.
  • Numerical control (NC) programmer can store up to 99 programs with 10 bends per program.
  • Electronic encoders make this hydraulic press brake accurate to +/- .002”.
  • Product counter makes production runs more efficient.
  • Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
  • You can also run the metal press brake in a manual mode for one-off projects as well as set-up.
  • Robust manual back gauge bolts to the machine and helps with repeatability.
  • Machined table, 36” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
  • Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.
  • Accepts attachments for punching, straightening, shearing, and even pipe bending.
  • Includes 80mm single-V tooling(V-opening die and V post).
  • Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
  • 2,266-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
  • Shelving in the front can hold tooling and items you might need on a daily basis.
  • We stock replacement parts, so we can ship them to you quickly.
  • This Baileigh horizontal press is covered by a 1-year parts warranty.
  • Our team of service reps, all with hands-in machine experience, are here to provide lifetime technical support by phone.


  Also available in a 78-ton Horizontal Industrial Press Brake
  Recommended for:

  • Full industrial production, including shipbuilding yards, boiler manufacturers, nuclear applications.
  • Making parts that are thick, but not wide (die size is limited).
• You can easily make small parts, like flanges and brackets, because material lies on a flat surface.

Technical Details

* specifications subject to change without notice.

Please note/ Pictures show the machine with optional tooling available as an additional item.

Please contact us for further details.
